Features

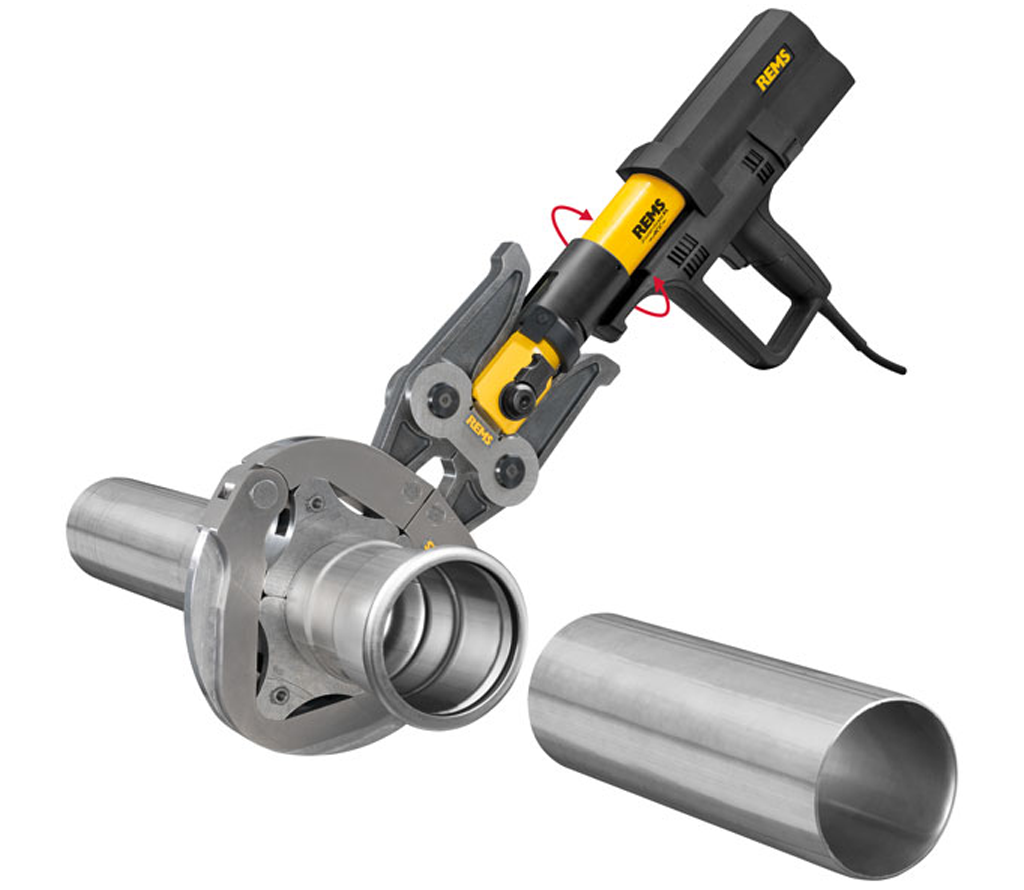

REMS Power-Press XL ACC – universal up to Ø 110 mm. Pressing of Ø 10 – 108 mm in just one action.
Ultra-fast, e.g. Geberit Mapress stainless steel Ø 108mm in only 15 seconds. With automatic circuit control.
Automatic locking of pressing tongs.
System advantage
Only one type of pressing tongs/pressing rings for all REMS radial presses 32kN and suitable radial presses of other makes with 32kN thrust force. All pressing tongs marked with * have another connection and also fit the manual radial press REMS Eco-Press. All pressing rings S (PR-2B) marked with ** can also be driven with the manual radial press REMS Eco-Press using the adapter tong Z8.
Pressing tongs/pressing rings for all common systems
Complete assortment of REMS pressing tongs/pressing rings/pressing rings XL for all common pressfitting systems (page 240–288). Highly durable pressing tongs/XL pressing rings made of tenacious, specially hardened special steel. Pressing contours of REMS pressing tongs/pressing rings/pressing rings XL are system-specific and correspond to the respective pressfitting system. Thus perfect system conformity, safe press jointing. Adapter tongs are required, as an accessory, for driving the REMS (PR) pressing rings.
Design
Compact, robust, job site-proven. Small in size, slender design, drive unit only 5.5 kg. Long working stroke for pressings in a single action, ideal for large dimensions. Ultra-fast, e.g. Geberit Mapress stainless steel Ø 108mm in only 15 seconds. Ergonomically designed housing with soft grip and recessed handle. Swivelling pressing tongs/adapter tongs seat. Secure seating of pressing tongs by automatic locking. Also suitable for other suitable makes of pressing tongs/ pressing rings. Adjustable hand guard.
Pressing operation by touch-control with ACC
For reliable service, operating and functional safety. Automatic retraction after completion of pressing operation (automatic circuit control).
Drive
Enormous thrust and pressing force for fast and perfect press jointing. Thrust force 32kN. Powerful electro-hydraulic drive with proven universal motor 450 W, robust planetary gear, eccentric reciprocating pump and compact high power hydraulic system. Safety tip switch.
